Guide to Selecting the Right Industrial Chiller

In modern industry, managing heat is key to keeping equipment running well and lasting longer. Industrial chillers, which cool things down, are used everywhere from making tiny electronics to big machine work. They are really important. But there are so many different chillers and makers out there. Picking the right one for your job can be hard. This article will help you choose the right industrial chiller to do the best job in your factory.

I. Applications of Industrial Chillers

Industrial water chillers serve as indispensable temperature control cores in modern industry, widely applied across precision manufacturing, chemical processing, pharmaceuticals, new energy, semiconductors, food processing, and numerous other sectors. The market continues to expand at a compound annual growth rate (CAGR) of approximately 5.2%.

These devices utilize refrigeration cycles to remove heat generated by production equipment or processes, thereby ensuring stable production environment temperatures and product quality.

Based on heat dissipation methods, industrial chillers are primarily categorized into two types: air-cooled chillers and water-cooled chillers. Air-cooled models use fans to force ambient air over the condenser for heat dissipation, while water-cooled models employ water as the cooling medium, discharging heat into the atmosphere via cooling towers.

When it comes to power capacity, industrial chillers cover a very wide range. They can provide cooling from just a few kilowatts, which is suitable for small CNC machines, all the way up to hundreds of kilowatts for large industrial equipment. This broad range means there’s a chiller for almost any size of job.

The reason air-cooled chillers get so much love is due to their simple installation and operation. Just plug them in and allow it to run, basically. Supplemental cooling towers and extensive piping found on some other types of chillers are not needed, making setup time much less involved than with other units. Maintenance is also simplified since fewer parts and systems need to be looked after, meaning it too will consume far less time than with other systems. Low maintenance added to easy installation puts air-cooled chillers high up on the list for quite a range of industrial applications, whether a little bit of cooling or a lot is required.

II. Key Differences Between Air-Cooled and Water-Cooled Systems

Selecting the type of industrial chillers is not a simple matter of weighing pros and cons, but requires careful consideration based on the application environment, cost structure, and long-term operational requirements. Each factor will significantly impact the overall efficiency, reliability, and cost-effectiveness of the refrigeration system throughout its entire lifecycle.

1. Air-Cooled Chillers

They use special parts called finned condensers and fans to send heat into the air around them. You don’t need extra water systems for cooling, so they are easy to set up and need less fixing later on. This makes them perfect for normal workshops and places with good airflow. They are simple, don’t cost too much at first, and are great for businesses that want to add cooling quickly without changing a lot of things.

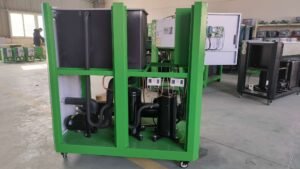

2. Water-Cooled Chillers

Water-Cooled Chillers are best known for great temperature stability and noise suppression. Since water has a much higher specific heat capacity than air, it naturally allows more efficient heat transfer and easy temperature control. Water-cooled chillers do not require large fans to run the condenser at an already high noise level; hence, most probably less noise will be generated by them, creating a quieter working environment. These units do not discharge hot exhaust air inside the workspace, thus assisting in indoor environment stability plus lowering the risk of having heat-related interruptions, especially in sensitive areas.

A practical tip: If your place needs to be very quiet, like a lab or medical facility, or if you need super-strict control over temperature and humidity, like in cleanrooms or precision production lines, water-cooled chillers are the better choice. They give you the exact control and stability you need for important industrial tasks and delicate operations, making sure everything works just right.

III. Define Requirements: Determine Heat Load and Cooling Parameters

1. Importance and Methods of Heat Load Calculation

To choose the right industrial chiller, you first need to know the heat load. The heat load is the total heat produced by your equipment while it runs. This is key to picking a chiller. If you calculate the heat load right, you can get a chiller that cools enough to stop your equipment from getting too hot and breaking. You can figure out the heat load using different methods, usually by looking at how much power your equipment uses, how long it runs, and how much heat it makes.

For example, to find the thermal load of a high-power laser, you look at how much power it uses and how long it runs. Say a laser works at 10kW for 8 hours. You use a special formula to figure out how much cooling it needs. This helps you pick the right chiller. But other things matter too, like how efficient the laser is and how hot the room is. Sometimes, you need to talk to the laser maker or a heat expert to get the right numbers. This way, the chiller can handle not just today’s heat, but also any extra heat from future changes or growth.

2. Selection of Coolant Type, Temperature, and Flow Rate

IV. Environmental Considerations: Adapting to Installation Site Conditions

1. Impact of Installation Environment on Industrial Chillers

The installation environment directly affects the performance and service life of industrial chillers. Different installation sites present distinct challenges. Indoor environments often involve limited space, elevated temperatures, and high dust levels. For instance, in electronics manufacturing workshops, equipment density and confined spaces combine with heat generated by electronic devices to significantly raise indoor temperatures. In such cases, the selected industrial chiller must feature robust heat dissipation capabilities and a dust-resistant design to ensure stable operation under harsh conditions. Additionally, the unit’s dimensions and layout must be considered to ensure proper placement within confined spaces while allowing sufficient ventilation clearance. This prevents equipment overheating and damage due to inadequate space.

2. Space Constraints and Layout Planning

Industrial water chillers installed outdoors face a lot of temperature swings, sometimes embracing the extremes of both ends-cold and hot. A wider temperature tolerance range and stronger protective measures are thus required for the units that will be working outdoors. For example, in industrial installations located in northern areas where winter temperatures get very low, freeze protection devices for chillers, lubrication oil tank heaters need to be included so that coolant does not freeze at low temperatures and normal operation is not disturbed. At the same time, waterproofing and moisture resistance have to be considered because there is a possibility of rain. Space limitations are also an installation factor when dealing with outdoor installations. In space-limited factories, locating the chiller in such a way that maintenance and servicing can easily be carried out is a requirement for stable operation over long periods.

V. Performance Matching: Selecting Based on Performance Curves

1. Utilizing Industrial Chiller Performance Curves for Selection

After defining cooling requirements and installation conditions, the next step involves selecting equipment based on the performance curve provided by industrial chiller manufacturers. This curve serves as a vital reference, visually illustrating the chiller’s cooling capacity under various operating conditions. By examining the performance curve, models meeting requirements can be selected based on parameters such as the desired cooling water temperature and maximum ambient temperature. For example, if an industrial process requires cooling water temperature control at 10°C and the equipment is installed in a workshop where ambient temperatures may reach 40°C, a chiller model capable of providing sufficient cooling capacity under these conditions must be identified on the performance curve.

Simultaneously, a safety margin should be incorporated during selection to ensure more stable and reliable operation during actual use. This accounts for unforeseen factors in production, such as load fluctuations or abnormal ambient temperature changes. An appropriate safety margin effectively reduces the risk of equipment overload or insufficient cooling under such conditions.

2. Pump Performance Matching

Beyond the chiller’s performance curve, pump specifications are equally critical. Within the chiller system, pumps circulate coolant to equipment requiring cooling and return it to the chiller for re-cooling. Thus, pump performance directly impacts overall system efficiency. When selecting industrial chillers, meticulously examine the pump’s performance curve to ensure it delivers sufficient pressure at the design flow rate. For instance, in large industrial equipment cooling systems, coolant may traverse lengthy pipelines to reach the equipment. This necessitates pumps with high-pressure output capabilities to overcome pipeline resistance losses. Insufficient pump performance may result in inadequate coolant flow, thereby compromising cooling effectiveness. Thus, during selection, choose pumps suitable for the system’s specific requirements and ensure they are matched with the chiller’s performance to achieve efficient operation of the entire cooling system.

VI. Comprehensive Consideration of Other Key Factors

1. Power Characteristics and Control Options

Other important issues that must be considered, apart from those discussed above, in addition to thermal load, cooling parameters, installation environment or condition, and performance matching, include the power characteristics of the chiller. These significantly influence energy consumption and, eventually, operating costs. Different types of chillers may demonstrate different power characteristics. For example, high-efficiency chillers use advanced refrigeration technologies as well as control strategies for conserving energy to reduce a great deal of energy consumption yet maintain the same level of cooling performance. This can translate into a huge amount of long-term energy cost savings when applied in continuous industrial operations.
Furthermore, chiller control options are increasingly diverse. Modern industrial chillers typically feature high-precision temperature control systems enabling accurate temperature regulation and automatic adjustment. Some high-end chillers also feature remote monitoring and diagnostics. Through network connectivity, users can monitor chiller operation anytime, anywhere, promptly identifying and addressing potential issues to enhance equipment efficiency and reliability.

2. After-Sales Service and Support

Choose industrial water chillers where after-sales service and support are good. Excellent after-sales support shall include total assurance on installation, commissioning, maintenance of the equipment, repair, as well as spare parts supply. Quick response in times of equipment failure will not only solve problems very fast and reduce downtimes but also minimize the overall production loss by keeping the operation flow continuous. At the same time, a good spare parts supply system is a precondition for long-term stable operation. When components need to be replaced, getting high-quality parts quickly avoids downtime of the equipment due to shortages and maximizes the continuity of operations.

Industrial water chiller users must not only evaluate equipment quality and performance levels but also weigh the after-sales service capabilities of suppliers. Opting for industrial chiller manufacturers and products backed by comprehensive, rapid, and efficient after-sales support is ideal. This not only provides robust assurance for long-term stable operation but also offers users peace of mind when equipment malfunctions occur. Such a comprehensive after-sales support system is the key guarantee for industrial chillers to maintain continuous, high-efficiency operation in demanding and dynamic industrial environments. Consequently, it has become a core factor that enterprises must prioritize during the selection process.

VII. Conclusion

Selection of the industrial water chiller is not an easy task, but it is very important. The first step is to determine the thermal load and cooling capacity, that is, the ability of the chiller to remove all the heat generated during production. Consider the environment in which you will install your chiller so that it can perform accordingly. Performance curves help match its capabilities with actual conditions. Also check power consumption, offered controls, and after-sales support to ensure a good choice. A proper system for cooling promotes productivity in this highly competitive market by lowering running costs and promoting business development. All these are what this guide intends to help make an apt decision between different types and brands of chillers regarding their ability to keep up with production.
